Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles

China Modern ElevatorTechnology Service(Guangdong)Co, Ltd. certification
China Modern ElevatorTechnology Service(Guangdong)Co, Ltd. certification
I'm Online Chat Now

Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles

Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles
Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles

Large Image :  Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles

Product Details:
Place of Origin: China
Brand Name: Chinese brand/joint venture brand
Certification: CNAS
Model Number: 1423
Payment & Shipping Terms:
Minimum Order Quantity: 100 folds
Price: CNY 800-1200 per fold, FOB
Packaging Details: 20 or 40 feet container per unit
Delivery Time: 20 working days
Payment Terms: T/T, L/C
Supply Ability: 6000 folds per month
Detailed Product Description
Type: 1400, 1200, 1000, 800 StepChainPitch (P): 135.46
Pin Dia (D): 12.7/15/20/25 RollerSize (D1 X H): 100 X 22
Axle: Solid Environment: Indoor / Outdoor
Axles Connection: Fixed Type Lubrication: Grease
Step Fixing: Plastic Clamp Bush Suitable For: 606, 610, 610MPT

Background Introduction
Roller outside link pallet chain are widely used in Public and heavy duty public moving walks. This type of moving walk are mostly used in airport, metro, public transportation hub, etc place. Due to intensive passenger flow, there are strict required of product quality and safety. Pallet chain as one of driving system element, it is the critical component in moving walk. After perennial use, if the pallet chains have worn out and reached its design service life, it must be replaced timely and propertly.

Product Specification

Public moving walk pallet chain - outside roller chain; pitch 135.46mm
Product series Lubrication

Chain Pin
Dia (mm)

Axle connection

Axles Type

Roller Size
Dia x Width

Step   Fixation

Min. Break

P1354-12-os grease 12.7 Fixed solid 100 x 22 clamp bush 124
P1354-15-os grease 15 Fixed


100 x 22 clamp bush  90
P1354-20-os grease 20 Fixed solid 100 x 22 clamp bush 150
P1354-25-os grease 25 Fixed solid 100 x 22 clamp bush 190

Product Detail
Chain pitch P = 135.46mm, 3P = step distance = 406.4mm, Pallet chain is used grease for lubrication.

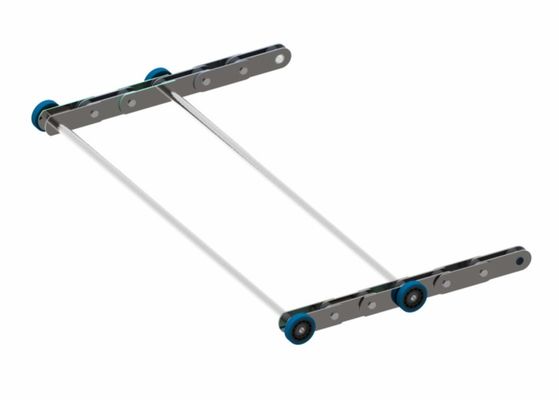

The pallet chain is connected to its left and right side link by solid axles. The solid axles of pallet chain are fixed with chain link plate for transportation. The pallet chain has type 800, 1000, 1200 and1400 of product width.

The pallets are fixing with pallet chain axles through plain bearing bush and sliding block

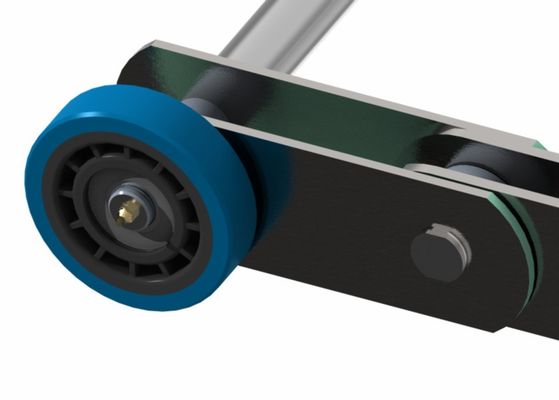

The pallet chain rollers are made by hydrolytic resistant polyurethane. The chain roller hub is used polyamide 66. All rollers have passed eligibility tests include anti-hydrolysis 250 hours, oil hydrolysis 250 hours and life test running time 5000hours.

Step chain roller eligibility test
Water hydrolysis test Oild hydrolysis test life time running test
250 hours 250 hours 5000 hours

Escalator Spare part, pallet chain, Roller outside Link - pitch 135.46, solid axles 0

Unit of chain ordering code

Product series Roller size Moving walk width  10 Folds chain 2 Folds chain Offset link
P1354-12-os 100x22 1000 aP1354-12-os-10 aP1354-12-0s-02 aP1354-12-0s-01
P1354-12-os 100x22 800 bP1354-12-os-10 bP1354-12-os-02 bP1354-12-os-01


100x22 1400 aP1354-15-os-10 aP1354-15-os-02 aP1354-15-os-01
P1354-15-os 100x22 1200 bP1354-15-os-10 bP1354-15-os-02 bP1354-15-os-01
P1354-15-os 100x22 1000 cP1354-15-os-10 cP1354-15-os-02 cP1354-15-os-01
P1354-15-os 100x22 800 dP1354-15-os-10 dP1354-15-os-02 dP1354-15-os-01
P1354-20-os 100x22 1400 aP1354-20-os-10 aP1354-20-os-02 aP1354-20-os-01
P1354-20-os 100x22 1200 bP1354-20-os-10 bP1354-20-os-02 bP1354-20-os-01
P1354-20-os 100x22 1000 cP1354-20-os-10 cP1354-20-os-02 cP1354-20-os-01
P1354-20-os 100x22 800 dP1354-20-os-10 dP1354-20-os-02 dP1354-20-os-01
P1354-25-os 100x22 1400 aP1354-25-os-10 aP1354-25-os-02 aP1354-25-os-01
P1354-25-os 100x22 1200 bP1354-25-os-10 bP1354-25-os-02 bP1354-25-os-01
P1354-25-os 100x22 1000 cP1354-25-os-10 cP1354-25-os-02 cP1354-25-os-01
P1354-25-os 100x22 800 dP1354-25-os-10 dP1354-25-os-02 dP1354-25-os-01

The pitch 135.46mm roller outside link pallet chain is used in heavy duty public moving walk with a pallet distance of 406.4mm.  It is suitable for moving walk product 606, 610 and 610MPT.
Producti and Quality Control
The pallet chain productio by Industry-Renowned chain suppliers. The entire pallet chain manufacture process includes meterial imgress, component machining, part heat treatment and final assembly with quality control plan to eansure each pallet chain achieved original design requirement. The quality level is consistent with international first-class brand escalator pallet chain.
All type pallet chain achieved CNAS type test certificate.
Our service
Our professional engineering team can provide technical support to help clients identify the appropriate pallet chain specifications to meet safety and lifetime requirements.
We kindly request our clients to provide us with any documents related to the escalator chain, e.g. technical service reports, spare parts numbers of the chain, drawings of the chain, breakage load certificates/breakage load calculations, etc. These documents can considerably speed up an inquiry and clarify discrepancies. To avoid any risk of providing a non-functioning chain, complete this questionnaire and an identification template with detailed photographs of the link plates, rollers, step pins, axles, axle parts and markings on the components. Please fill in the following points and chain templates as completely as possible. If the template deviates from the chain to be measured, sketch, measure and photograph the deviation in detail.


Contact Details
Modern ElevatorTechnology Service(Guangdong)Co, Ltd.

Contact Person: admin

Tel: +8613922776305

Send your inquiry directly to us (0 / 3000)
