Product Details:
Payment & Shipping Terms:
|
| Type Of Modernization: | Renewal | Series Of Escalator: | Public |
|---|---|---|---|
| Model: | 510 Escalator | Balustrade: | Glass / Opaque |
| Envirement: | Indoor / Outdoor | Width: | 1000 / 800 / 600 |
| No. Of Flat Steps: | 2 / 3 | Rise(m): | <=10 |
| Speed(m/s): | 0.5 /0.65 | Inclination: | 30° / 35° |
| High Light: | Glass Escalator Modernization,68 teeth sprokect Escalator Modernization,CNAS balustrade replacement |
||

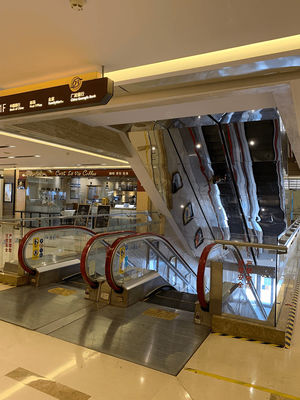

510 Escalator modernization package - renewal package - balustrade replacement
Package introduction
1. The applicable escalator refurbishment task
Package 510mod-p04 is for escalator appearance refurbishment. This package solution is to keep using its old style off center handrail balustrade design. The skirt panel, inner / outer decking, handrail guide profile will be st. st. material style.The handrail drive will be orginal design and be replaced by new part. The lighting features such as under handrail lighting, brush guard and brush guard lighting, comb lighting, etc. are additional options. The escalator exterior cladding and comb and floor plate can be an optional customized order.
2. Technical solution
Basic package
| Parts |
Retrofit method |
Configuration and key specification |
|---|---|---|
| (1) Main drive |
|
|
| (2) Tension carriage |
|
|
| (3) Track system |
|
|
| (4) Machine |
|
|
| (5) Drive Chain |
|
|
| (6) Controller |
|
|
| (7) Safety switches |
|
|
| (8) Handrail |
original design |
Rubber (SBR) / NT3000 / CSM |
| (9) Step |
|
|
| (10) Step chain |
|
|
| (11) Handrail drive |
original design |
traction belt drive |
| (12)Skirt panel |
new design |
2mm stainless steel sus304 |
| (13) Inner deck |
new design |
2mm stainless steel sus304 |
| (14) Outer deck |
new design |
2mm stainless steel sus304 |
| (15) Interior panel |
new design |
10mm thickness safety glass |
| (16) Floor plate |
|
|
| (17) Truss |
Option features
| Function/feature | Description | Configuration and Specification |
| Brush guard lighting | LED strip/tube | single color/RGB, 24 v |
| Under handrail lighting | LED strip/tube | single color/RGB, 24 v |
| Handrail with disinfection device | UV tube | 24 v |
| Exterior cladding | Customized design | 1.5 mm stainless steel sus304 |
| Comb and floor plate | Customized design | Alu. or St. St. |
3. Benefits
Refresh the escalator appearance after replacinf material of balustrade. Short period of refurbishment.
4. Quality and performance
Technical solution by professional technical design team, all retrofit material supply by reputable professional escalator parts manufacturers where managing by mature parts processing technology, strict quality control system.
5. Our service
You have a need, we are just professional, provide quality service. Welcome contact us to discuss any technical issue on escalators.
- Escalator product design service
- Escalator modernization solution
- Escalator customized spare parts
- Escalator technical consultans service
- On site technical support
