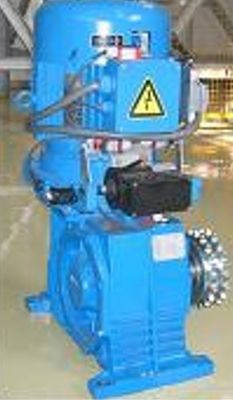

Escalator machine, worm gear 11/15kw for high rise commercial unit, indoor

Escalator machine, worm gear 11/15kw for high rise commercial unit,  indoor
Escalator machine, worm gear 11/15kw for high rise commercial unit,  indoor Escalator machine, worm gear 11/15kw for high rise commercial unit,  indoor

Large Image :  Escalator machine, worm gear 11/15kw for high rise commercial unit, indoor

Product Details:
Place of Origin: China/Germeny
Brand Name: Chinese Brand/Joint venture
Model Number: 122a
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: CNY 20k-30k, per unit
Delivery Time: 4 weeks
Payment Terms: T/T
Detailed Product Description
Motor Power: 11/15kw Type Of Gear Box: Worm Gear, CRW160
Gear Box Ratio: 24.5 Number Of Teeth In Output Shaft Sprocket: 16/17/19/21/22/23
Motor Voltage: 380/400/450 Frequency (Hz): 50/60
Phase-Wire: 3-4/3-3

The operation of the escalator is powered by the escalator machine which make the step band system and handrail system operate and transport passengers.The machine is the core part of the escalator, mainly composed of motor, reducer, brake, safety switch, electrical interface, etc. As the core and safety component in escalator, it's strong required the product quality and safety. After long-term operation of the escalator, the worm gears have been worn out, the motor and other parts were reached their service life, the machine  must be replaced properly and timely to restore its quality, safety and effective use of the product.



The teeth no of machine sprocket is base on escalator system design to specify per contract.





Application Duty
Gear box type Worm Gear CRW 160
Efficiency of entire machine ~ 73%
Motor Efficiency IE2 / IE3
Motor Isolation class  F
Gear box power factor 82~ 85% base on motor speed
machine life time 140000 hour
Class of protection  IP43/IP54
Lubrication oil  Mobil 460/220
code compliance EN115-1: 2008 / GB16899-2011



Machine general structure

Escalator machine, worm gear 11/15kw for high rise commercial unit,  indoor 0
