|Type:||1000 / 800 / 600||StepChainPitch (P):||133.33|
|Pin Dia (D):||12.7/15/20/25||RollerSize (D1 X H):||76.2 X 22|
|Axle:||Solid||Environment:||Indoor / Outdoor|
|Axles Connection:||Fixed Type||Lubrication:||Oil|
|Step Fixing:||Index Pin||Suitable For:||510/513NPE/508NCE/515NPE|
513NPE index pin Escalator Step Chain,
pitch 135.46 Escalator Step Chain,
3P Escalator solid axles
Escalator Spare part, Roller Inside Link Step Chain - pitch 135.46, solid axles, index pin
The commercial escalator are used roller inside link step chain design. These kinds of escalator products are mostly used in places with commercial building with nornal passenger flow such as department stores, shopping mall, office buildings, hospitals, exhibition centers, hotels and airports, etc. Therefore, there are strong requirements for the safety and production quality control, the step chain which is the critical component in the escalator drive system. After perennial use, if the step chain has worn out and reached its design service life, it must be replaced timely and propertly.
department stores, offices,
hospitals, shopping centers, exhibition centers, hotels and airports
|76.2 x 22||Index pin||111|
|13546-15-cs||oil||15||Fixed||solid||76.2 x 22||Index pin||90|
|13546-20-cs||0il||20||Fixed||solid||76.2 x 22||Index pin||150|
|13546-25-cs||oil||25||Fixed||solid||76.2 x 22||Index pin||190|
Chain pitch P = 135.46mm, 3P = step distance = 406.4mm
step chain is used oil for lubrication.

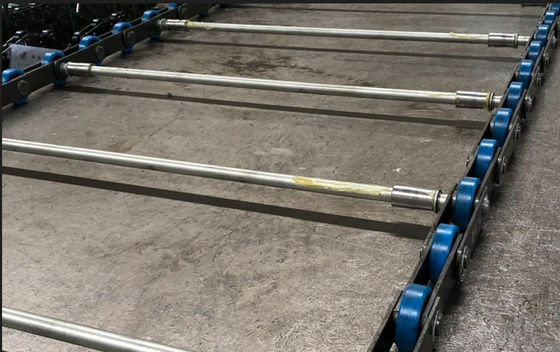

The chain is connected to its left and right side link by solid axles. The solid axles step chain are fixed with chain link plate as assembly chain for transportation. Normally, the unit's chain folds base on contract specified and it can be devided by 10 folds, 2 folds and offset link.
The step is used index pin to fix with step chain.There are 3 type of chain width:1000, 800 and 600 for escalator type.
The step chain rollers are made by hydrolytic resistant polyurethane and the material of chain roller hub is PA 66. All step chain roller passed th eligibility tests include anti-hydrolysis 250 hours, oil hydrolysis 250 hours and life test running time 5000hours.
Unit of chain ordering code
|Product series||Escalator Type||12 Folds chain||2 Folds chain||Offset link|
The pitch 135.46mm roller inside link step chain is widely used in a step distance 406.4mm commercial escalator. It is suitable for escalator product 506, 510, 513NPE, 508NCE, 515NPE, etc.
Producti and Quality Control
The step chain productio by Industry-Renowned step chain suppliers. The entire step chain manufacture process includes meterial imgress, component machining, part heat treatment and final assembly with quality control plan to eansure each step chain achieved original design requirement. The quality level is consistent with international first-class brand escalator step chain.
All type step chain achieved CNAS type test certificate.
Our professional engineering team can provide technical support to help clients identify the appropriate step chain specifications to meet safety and lifetime requirements.
We kindly request our clients to provide us with any documents related to the escalator chain, e.g. technical service reports, spare parts numbers of the chain, drawings of the chain, breakage load certificates/breakage load calculations, etc. These documents can considerably speed up an inquiry and clarify discrepancies. To avoid any risk of providing a non-functioning chain, complete this questionnaire and an identification template with detailed photographs of the link plates, rollers, step pins, axles, axle parts and markings on the components. Please fill in the following points and chain templates as completely as possible. If the template deviates from the chain to be measured, sketch, measure and photograph the deviation in detail.
