| Type: | V Shape | Outer Width(W): | 76/79.2/80/82.5/88 |
|---|---|---|---|
| Outer Height(H): | 28/28.15/28.5/35/35.5 | Lip Width(C): | 37.5/38/40/42 |
| Surface Material: | Rubber(SBR) | Slidding Material: | Nylon/polyester Fibe |
| Color: | Black/ Various Colors |
Product description

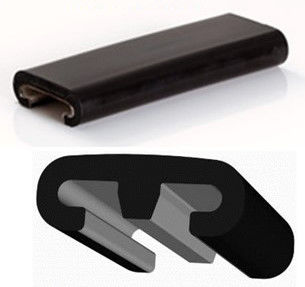

The escalator/moving walk handrail are divided into SBR (styrene butadiene rubber), CSM (also known as Hypalon) and NT(polyurethane).

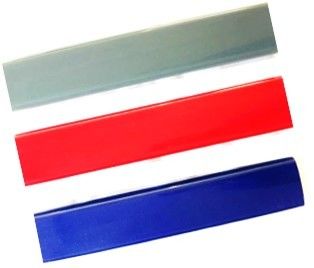

Handrail are normally made in black for surface color, but can be produced in red, blue, gray, yellow, and other colors to suit customer demand.
SBR(Rubber) CSM(Hypalon) (NT(polyurethane)

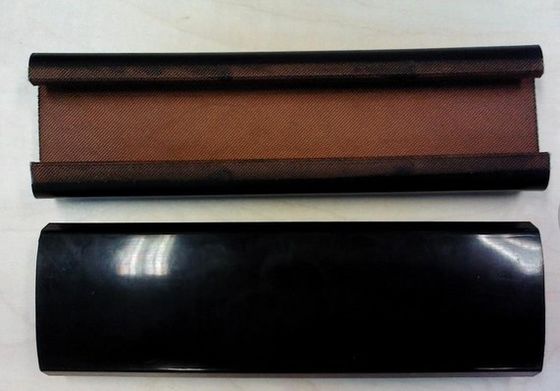

There are three types of sliding layers inside the handrail of an escalatormoving walk that touches the handrail guide rail: nylon, polyester and cotton. The current use of polyester fabrics is widespread.
nylon fabrics sliding layer polyester fabrics sliding layer
Performance parameter
| Item | Parameter | Remarks |
| design life time | 5-8 yeras | |
| Length tolerance | ≤±20mm | L ≤ 30mm |
| ≤±25mm | 30m < L ≤ 100m | |
| ≤±0.03% | L > 100m | |
| Minimum positive bending radius | ≤180mm | |
| Minimum back bending radius | ≤275mm | |
| Elongation | ≤0.1% | F=2000N |
| Straightness | ≤4mm | F=1500N, L=2m |
| Breaking force | ≥25KN | |
| Lip strength | ≥70N | 40mm Width, Extend 7mm |
| Hardness | 75±5A | Shore |
| Slip coefficient | ≤0.3 | Between galvanized steel plate |
| ≤0.3 | Between stainless steel plate | |
| ≥0.6 | Between traction wheel | |
| Operating temperature | -18～43℃ | Nylon slinding layre |
The opaque balustrade of public escalators and moving walks are used V shape handrail which are use newel drive handrial drive system.
See below table for specifications and dimensions of commonly used v shape handrails. Contact us if the handrail band size is inconsistent with the data below.
| Handrail Critical Dimensions | |||||
| Product Series |
Handrail Type |
Surface Material | Outer Width (W) |
Outer Heigh (H) |
Lip Width (C) |
| VS7628 | V | SBR | 76 | 28 | 38 |
| VS7928 | V | SBR | 79.2 | 28.15 | 37.5 |
| VS8028 | V | SBR | 80 | 28.5 | 40 |
| VS8235 | V | SBR | 82.5 | 35.5 | 38 |
| VS8835 | V | SBR | 88 | 35 | 42 |
The client will need to choose the corresponding handrail type depending on your escalator or moving walk.
We kindly request our clients to provide us with any documents related to the escalator handrail, e.g. technical service reports, spare parts numbers of the handrail, drawings of the handrail profile, OEM part number, etc. These documents can considerably speed up an inquiry and clarify discrepancies. To avoid any risk of providing a non-functioning handrail, complete the questionnaire and an identification template with detailed photographs of the handrail outer width(W),outer heigth (H), lip width(C) and markings on the components. Please fill in the following points and handrail templates as completely as possible. If the template deviates from the handrail to be measured, sketch, measure and photograph the deviation in detail.
